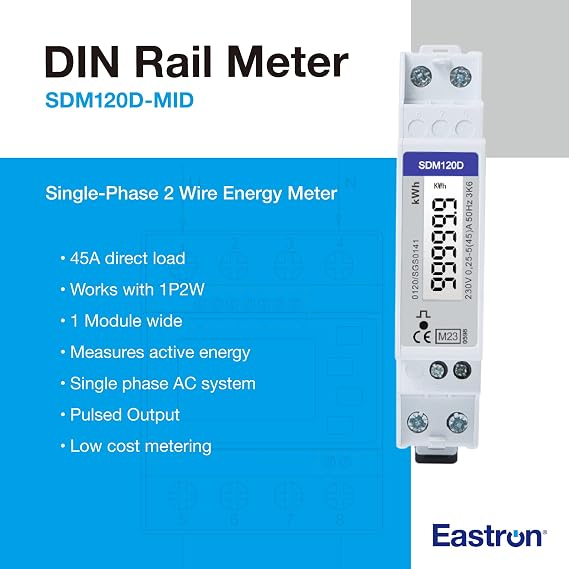

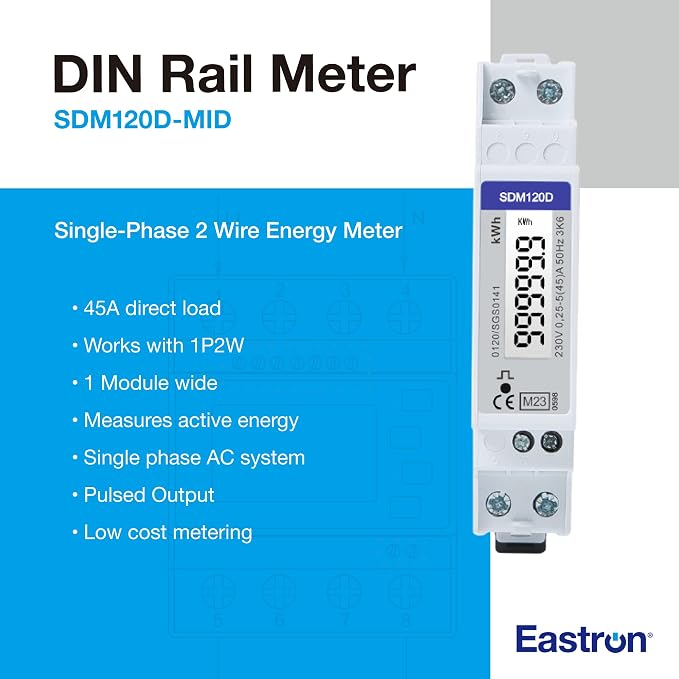

SDM120D Single Phase 230V 0.25-5 45 Amp kWh DIN Rail Electric AC Meter Pulse Output 1000 Imp/kWh Digital LCD MID Certified/Calibrated
85% of respondents would recommend this to a friend
Item #:
175914224
MWK 115368
Price Details
Excluding Shipping & Custom charges ( Shipping and custom charges will be calculated on checkout )
*All items will import from EU
In stock
Imported from EU store
QTY:
Order now and get it around Friday, July 31
Secured transaction
Ubuy works hard to protect your security and privacy. Our advanced payment security system ensures confidentiality by encrypting your information during transmission using AES (Advanced Encryption Standards) and SSL (Secure Socket Layer) protocols. Your payment details are 100% secure as we do not share your payment details with third party sellers.
Our Top Logistics Partners
Track the energy consumption of your home or office in real time!
Fast
Shipping
Free
Return*
Secure Packaging
100% Original Products
PCI DSS Compliance
ISO 27001 Certified
What Stands Out
High accuracy
MID certified, ensuring precise energy measurement for 0.25-5 A ranges, making it reliable for both residential and commercial applications.
Digital Display
Equipped with a clear LCD that provides real-time energy readings, simplifying monitoring and usage analysis for users.
DIN Rail Compatible
Designed for easy installation on standard DIN rails, ensuring a neat and safe setup in electrical panels or distribution boards.
Product Details
- Energy monitoring - Track the energy consumption of your home or office in real time! This advanced energy monitor measures the active energy (kWh) of low load circuits (45 A rated value) with a pulse output
- Easy to read display - The non-resettable meter is equipped with a 6-digit LCD display (without backlight), which is displayed in 4 integrals + 1 decimal number. The maximum reading is 99999.9 kWh. If the reading exceeds 10,000 kWh, the meter displays 5 integrals + 1 decimal place
- Pulse connection - Our electric meter uses a pulse output separate from the indoor circuit to generate pulses proportional to the measured energy. This requires an external voltage source of 5-27V DC with a maximum input current of 27mA DC
- Energy-saving - The meter has an LED light with a constant of 1000 Imp/kWh that flashes when power is consumed. The more power is consumed, the faster it flashes. This makes it easier to monitor your consumption and saves valuable kWh
- SUBMETERING - This energy monitoring tool provides a detailed breakdown of the energy consumption of a single circuit. Ideal for monitoring individual circuits and accurate underbilling by accurately measuring and monitoring energy consumption
| Manufacturer | EASTRON |
| Part Number | SDM120D MID |
| Product Dimensions (L x W x H) | 1 x 1 x 1 cm; 81 g |
| Item model number | SDM120D MID |
| Color | SDM120D MID |
| Style | SDM120D MID |
| Material | Self-extinguishing UL94V-0 |
| Power Source | AC |
| Display Style | Digital LCD screen |
| Certification | MID certification |
| Batteries Incoruded? | No |
| Batteries Required? | No |
| Item Weight | 81 g |
Who Should Buy?
-
Homeowners
Ideal for homeowners wanting to monitor electricity consumption accurately and manage costs effectively.
-
Small Businesses
Suitable for small businesses needing detailed energy usage insights to optimize energy efficiency and reduce bills.
-
Electricians
Recommended for electricians seeking precise, certified meters for installations and maintenance of electrical systems.
-
Large Enterprises
Not suitable for large enterprises as its capacity may not handle extensive energy consumption needs effectively.
-
Non-technical Users
May be confusing for non-technical users who might struggle with installation and understanding consumption readings.
-
Off-Grid Systems
Not recommended for off-grid renewable energy systems, as it may lack functionality needed for diverse energy sources.
Product Description
Have any Query? Chat with us
Customer Questions & Answers
-
Question:
What is the maximum load that the meter can handle?
Answer: The meter can handle circuits up to 45 Amps. -
Question:
How does the pulse output work?
Answer: The pulse output generates signals proportional to measured energy with an external voltage source required. -
Question:
Is this meter suitable for residential use?
Answer: Yes, it is perfect for monitoring energy consumption in both residential and commercial settings.
